  #26
Old 01-28-2018, 07:49 AM
Geo's Avatar
Geo Geo is offline
Guru

Join Date: Mar 2005
Location: Greece
Posts: 3,921
Default
Quote:
Originally Posted by Sneshko View Post
Ha, ha...! Very good Geo!
Thanks!
...Аnd, Is this PCB from OMBD-1 or 2 ???
Thank you in advance for the answer!
Regards!
Sneshko
The pcb photo is the first pcb for OBMD1.
Constructor had attach to a Greek forum.
Look at top where is writes "antenna". It uses this track as antenna and this is what shows at schematic as coil with critical null
__________________
Geo
Reply With Quote
  #27
Old 01-28-2018, 12:35 PM
abdou2014 abdou2014 is offline
Guru

Join Date: Mar 2014
Posts: 1,042
Default

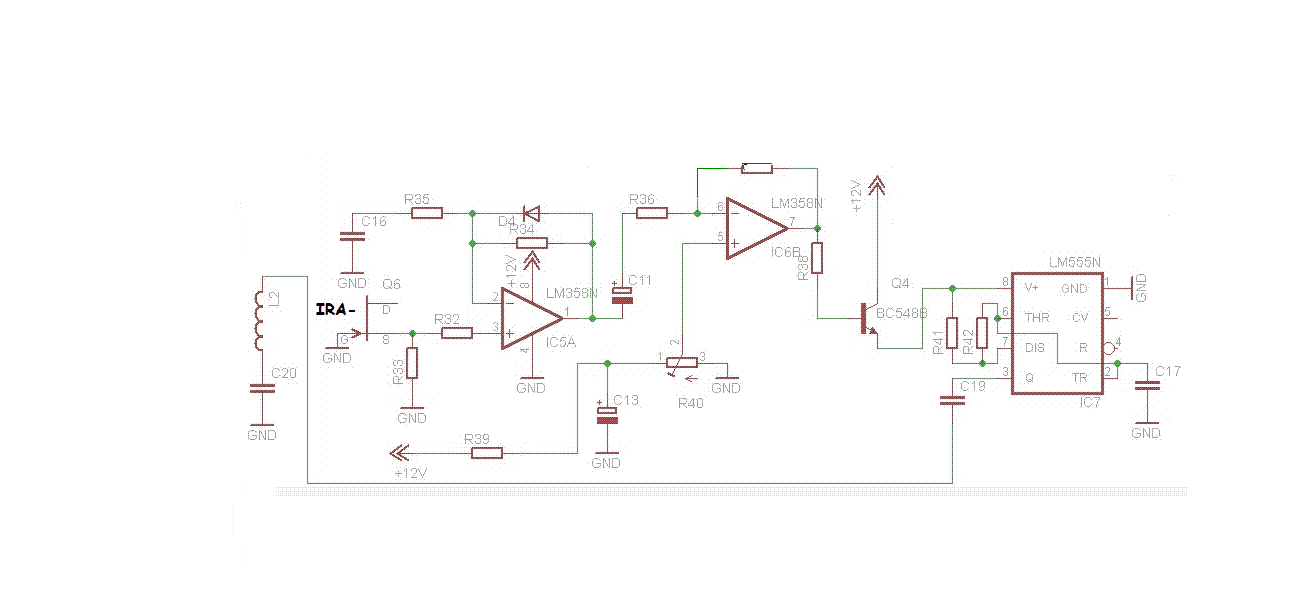

Is it a coil stimulator, what are the values, can we know more about the IR sensor ?
Thank you !
Attached Images

Reply With Quote
  #28
Old 01-28-2018, 02:34 PM
dragomir dragomir is offline
Member

Join Date: Jan 2016
Posts: 80
Default
I feel like this infrared sensor is used to protect against opening the box.
Reply With Quote
  #29
Old 01-28-2018, 09:44 PM
dragomir dragomir is offline
Member

Join Date: Jan 2016
Posts: 80
Default
Geo, I did not see the second antenna in the picture
Reply With Quote
  #30
Old 01-29-2018, 05:45 AM
GOLDEN LILLY's Avatar
GOLDEN LILLY GOLDEN LILLY is offline
Senior Member

Join Date: Oct 2005
Posts: 147
Default
The second antenna is not a coil, it is a in a form of a trace in the pcb(worded ANTENNA), it is connected to the input of the main coil via capacitor. This antenna is dependent on the PIR sensor. Look at the picture in the first page on this thread...
I have a complete schematic, pcb for this project...
Reply With Quote
  #31
Old 01-29-2018, 06:00 AM
GOLDEN LILLY's Avatar
GOLDEN LILLY GOLDEN LILLY is offline
Senior Member

Join Date: Oct 2005
Posts: 147
Default
here is my project...this is based on the schematic posted in the forum...crypton clone.
Attached Images

Reply With Quote
  #32
Old 01-29-2018, 07:07 AM
Geo's Avatar
Geo Geo is offline
Guru

Join Date: Mar 2005
Location: Greece
Posts: 3,921
Default
Quote:
Originally Posted by GOLDEN LILLY View Post
The second antenna is not a coil, it is a in a form of a trace in the pcb(worded ANTENNA), it is connected to the input of the main coil via capacitor. This antenna is dependent on the PIR sensor. Look at the picture in the first page on this thread...
I have a complete schematic, pcb for this project...
Yes, you are right...

btw...congrats.. for your project.
__________________
Geo
Reply With Quote
  #33
Old 01-29-2018, 07:16 AM
abdou2014 abdou2014 is offline
Guru

Join Date: Mar 2014
Posts: 1,042
Default
I need your help Geo !
Reply With Quote
  #34
Old 01-29-2018, 09:10 AM
dragomir dragomir is offline
Member

Join Date: Jan 2016
Posts: 80
Default
GOLDEN LILL Yhow is the role of the infrared sensor when it is enclosed in the box?
Reply With Quote
  #35
Old 01-29-2018, 07:25 PM
Geo's Avatar
Geo Geo is offline
Guru

Join Date: Mar 2005
Location: Greece
Posts: 3,921
Default
Quote:
Originally Posted by dragomir View Post
GOLDEN LILL Yhow is the role of the infrared sensor when it is enclosed in the box?
No role, it don't work.
IR there is only to make the device more complex and to be convincing that it works

__________________
Geo
Reply With Quote
  #36
Old 01-29-2018, 07:26 PM
Geo's Avatar
Geo Geo is offline
Guru

Join Date: Mar 2005
Location: Greece
Posts: 3,921
Default
Quote:
Originally Posted by abdou2014 View Post
I need your help Geo !

I hear.....
__________________
Geo
Reply With Quote
  #37
Old 01-29-2018, 09:25 PM
dragomir dragomir is offline
Member

Join Date: Jan 2016
Posts: 80
Default
It soon blocks the operation of the device when opened
Reply With Quote
  #38
Old 01-29-2018, 10:01 PM
abdou2014 abdou2014 is offline
Guru

Join Date: Mar 2014
Posts: 1,042
Default
The audio stage does not work, I think there is an error ???
Reply With Quote
  #39
Old 01-29-2018, 11:51 PM
abdou2014 abdou2014 is offline
Guru

Join Date: Mar 2014
Posts: 1,042
Default

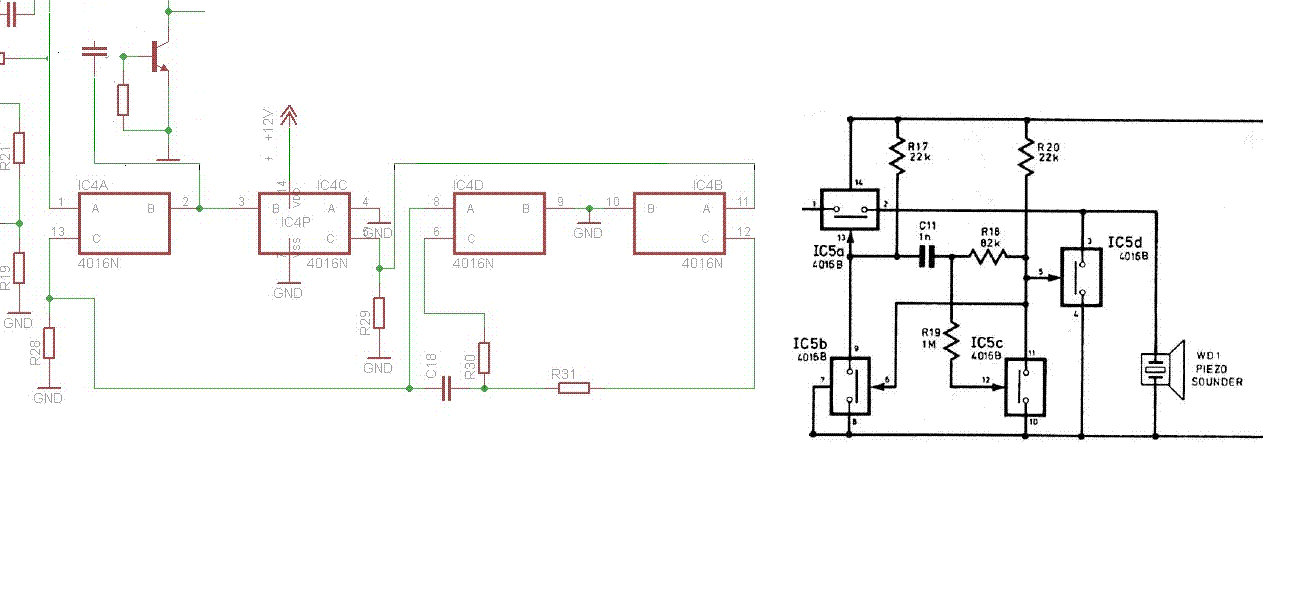

Your circuit and the original are not the same, I need values of your circuit, thank you Geo!
Attached Images

Reply With Quote
  #40
Old 01-30-2018, 05:47 AM
GOLDEN LILLY's Avatar
GOLDEN LILLY GOLDEN LILLY is offline
Senior Member

Join Date: Oct 2005
Posts: 147
Default
Of course it is not the same. The circuit drawn by Geo is a modification from the original circuit of Andy Flind. In the original circuit, the 4016 directly drives the buzzer but in the modification, the same 4016 drives a tone generator using 555 ic...
Reply With Quote
  #41
Old 01-30-2018, 05:59 AM
GOLDEN LILLY's Avatar
GOLDEN LILLY GOLDEN LILLY is offline
Senior Member

Join Date: Oct 2005
Posts: 147
Default
The PIR sensor is not inside the enclosure it is positioned at the back of the unit facing towards the area to be detected. Even without the IR, the device will still function. I think the IR senses a slight change in the surrounding temperature. Take note that a metal buried near the surface absorbs heat from the sun during daylight. This maybe the reason why crypton will detect near surface buried metals at night.
Reply With Quote
  #42
Old 01-30-2018, 07:10 AM
Geo's Avatar
Geo Geo is offline
Guru

Join Date: Mar 2005
Location: Greece
Posts: 3,921
Default
Quote:
Originally Posted by abdou2014 View Post
Your circuit and the original are not the same, I need values of your circuit, thank you Geo!
The circuit is exactly the same.
4016 and 4066 are quad switch ICs, so no problem if you will use the 1st switch or 2nd etc....
The schematics have diference only at pins, nothing else.
__________________
Geo
Reply With Quote
  #43
Old 01-30-2018, 07:19 AM
Geo's Avatar
Geo Geo is offline
Guru

Join Date: Mar 2005
Location: Greece
Posts: 3,921
Default
Quote:
Originally Posted by GOLDEN LILLY View Post
The PIR sensor is not inside the enclosure it is positioned at the back of the unit facing towards the area to be detected. Even without the IR, the device will still function. I think the IR senses a slight change in the surrounding temperature. Take note that a metal buried near the surface absorbs heat from the sun during daylight. This maybe the reason why crypton will detect near surface buried metals at night.
IR is a trick, it don't do anything.
When you make a lrl with purpose to sell it then you try to protect it from copies (at least from amateurs). One way is to make it very complex. It is the recipe by Mineoro...
So works only one module (IF IT WORKS) all the other doing NOTHING.
The same here is happenng with IR.
The same is happening at Cryfton OBMD-3 with Ion detector and GOLD SENSOR etc...

__________________
Geo
Reply With Quote
  #44
Old 01-30-2018, 09:21 AM
abdou2014 abdou2014 is offline
Guru

Join Date: Mar 2014
Posts: 1,042
Default

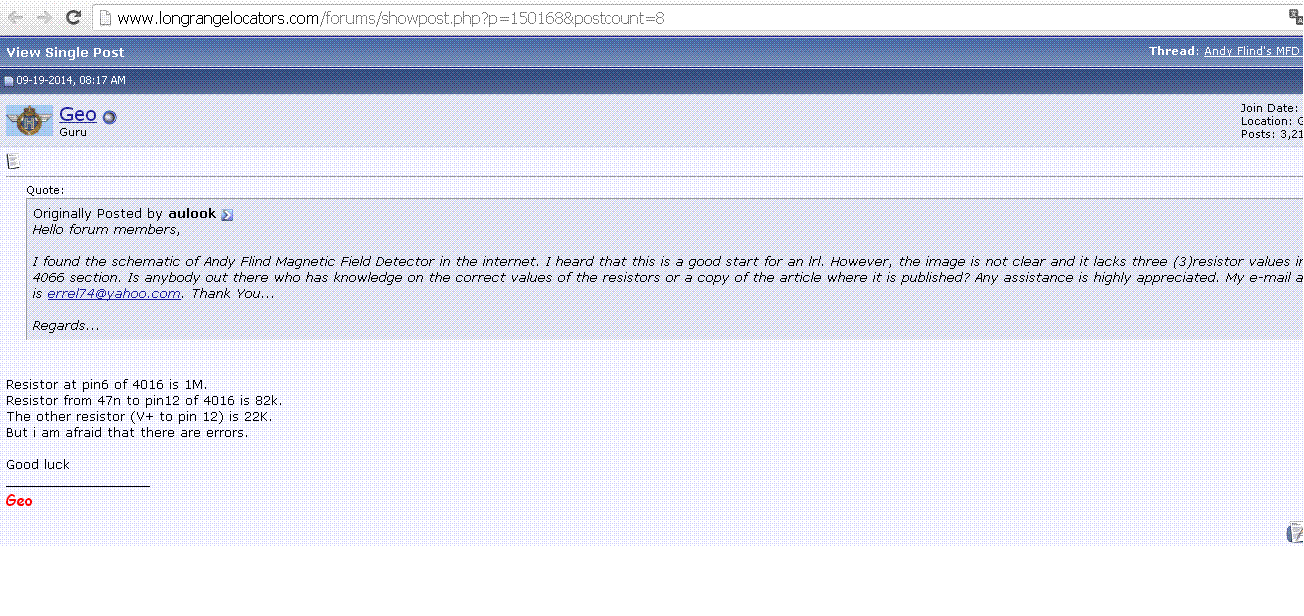

I check it's still wrong, when I approach the transmitter the LED lights up all alone, and when I get closer than the buzzer produces a weak sound .
I think it's not normal that the VU alone displays before (CA3130 + 4016 + NE555)
what do you mean by an error in this post Geo ?
Attached Images

Reply With Quote
  #45
Old 01-30-2018, 09:39 AM
Sneshko's Avatar
Sneshko Sneshko is offline
Senior Member

Join Date: Nov 2011
Location: Serbia
Posts: 195
Default
Quote:
Originally Posted by dragomir View Post
GOLDEN LILL Yhow is the role of the infrared sensor when it is enclosed in the box?
Dear friends!

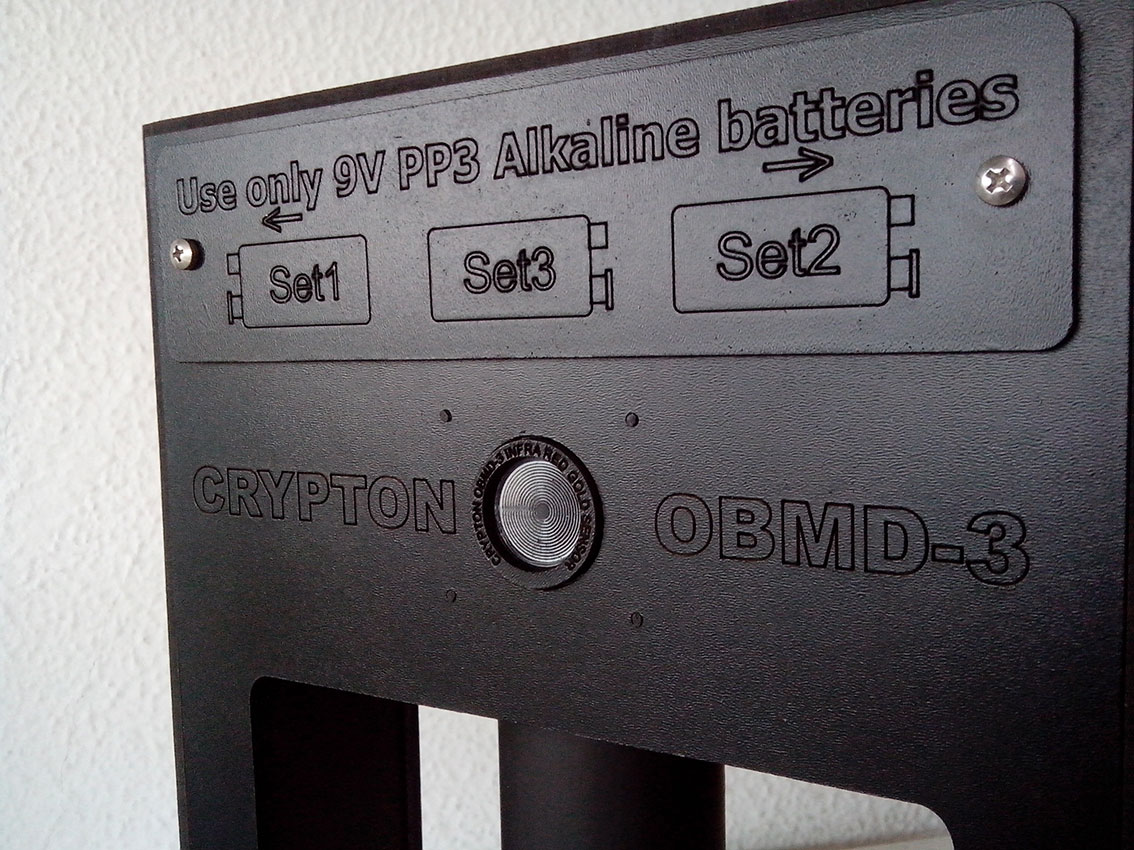

Position of the IR sensor on the Crypton OBMD-3 LRL device.
Regards!
Sneshko
Attached Images

Reply With Quote
  #46
Old 01-30-2018, 11:48 AM
brs brs is offline
Senior Member

Join Date: Mar 2014
Posts: 123
Default
Quote:
Originally Posted by Sneshko View Post
Dear friends!
Position of the IR sensor on the Crypton OBMD-3 LRL device.
Regards!
Sneshko
This I think is purely aesthetic decoration
Reply With Quote
  #47
Old 01-30-2018, 02:42 PM
GOLDEN LILLY's Avatar
GOLDEN LILLY GOLDEN LILLY is offline
Senior Member

Join Date: Oct 2005
Posts: 147
Default
Yes, its a decoration with a purpose.
Reply With Quote
  #48
Old 01-30-2018, 05:34 PM
dragomir dragomir is offline
Member

Join Date: Jan 2016
Posts: 80
Default
This is my project and infrared sensor is inside
Attached Images

Reply With Quote
  #49
Old 01-30-2018, 05:45 PM
Geo's Avatar
Geo Geo is offline
Guru

Join Date: Mar 2005
Location: Greece
Posts: 3,921
Default
Hi Dragomir.
Your photo is not visible.....
__________________
Geo
Reply With Quote
  #50
Old 01-30-2018, 05:55 PM
Geo's Avatar
Geo Geo is offline
Guru

Join Date: Mar 2005
Location: Greece
Posts: 3,921
Default
Quote:
Originally Posted by Sneshko View Post
Dear friends!
Position of the IR sensor on the Crypton OBMD-3 LRL device.
Regards!
Sneshko
At obmd3 there isn't IR.
But if there is or not.... same results. Nothing....
__________________
Geo
Reply With Quote
