IN time for a circuit

[Clondike Clad]

First man made fire and that was a big thing.
I want to see a working LRL FIND A COIN AT 2 METERS.
I would like to work on a active system.
So help is needed. the coin I want to pick up at 2 meters is a dime.
Some PI detectors are very good on deep coins

[mosha]

Originally Posted by Clondike Clad

First man made fire and that was a big thing.
I want to see a working LRL FIND A COIN AT 2 METERS.
I would like to work on a active system.
So help is needed. the coin I want to pick up at 2 meters is a dime.
Some PI detectors are very good on deep coins

if i gave you my dc2008, would you stop posting this demand every day.

[mosha]

Originally Posted by Clondike Clad

First man made fire and that was a big thing.
I want to see a working LRL FIND A COIN AT 2 METERS.
I would like to work on a active system.
So help is needed. the coin I want to pick up at 2 meters is a dime.
Some PI detectors are very good on deep coins

if i gave you my dc2008, would you stop posting this demand every day.

[ANDREAS]

Hi Clodike
Nice to see you here
Wait... wait... wait. The big secret they is.... patience
regards
Andreas

[Esteban]

Originally Posted by mosha

if i gave you my dc2008, would you stop posting this demand every day.

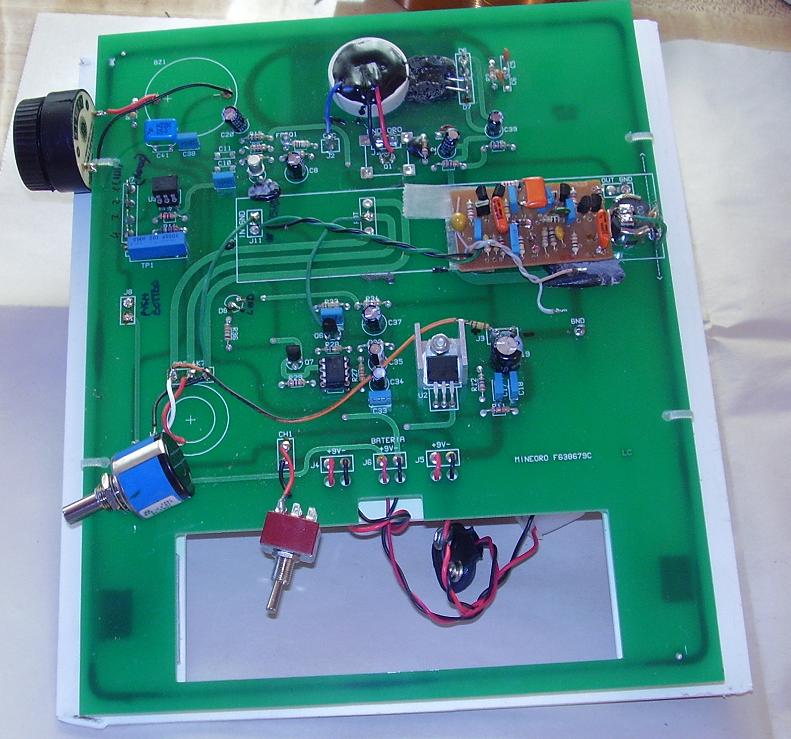

I'm making many modifications for the 2008 for a friend. When I finish this (I HOPE IS UNIVERSAL MODIFICATIONS FOR MAYBE ALL KINDS OF MINEORO PISTOLS, INCLUDE OLD MODELS), I'LL POST SOME SCHEMATIC HERE. SO, WAIT!!! SORRY!!! I'M VERY BUSY!!! See pics of the original and modifications. There is more a PCB (RF), I'm experimenting a good option for it. Now acts as a induction loop balance (also corners of loops catch metal, but more big, in ferrite place is extremely sensitive), I think is a first??? balance loop by ferrite oscillator).

You can see a coin detection (but no audio, because I take with a photo camera without audio, but yes led). Download from this link, file in mov extension, you need Quicktime programm.
http://www.sendspace.com/file/9qjwuw

Clondike, you're enerve with this attitude:

First man made fire and that was a big thing.
I want to see a working LRL FIND A COIN AT 2 METERS.
I would like to work on a active system.
So help is needed. the coin I want to pick up at 2 meters is a dime.
Some PI detectors are very good on deep coins


Regards

Esteban

[mosha]

Hi Esteban,

this is great news for all mineoro users if you could make it more stable and detect long rang.

we awaiting for full picture.

good luck.

[Clondike Clad]

Originally Posted by mosha

if i gave you my dc2008, would you stop posting this demand every day.

Can I take it apart?

[mosha]

Originally Posted by Clondike Clad

Can I take it apart?

I have to wait for Esteban modification and see the result. if nothing imporoved, I ll dismantle it and take picutres to post them here.

regards,

[michael]

Hi, good to see that you're doing such effort, but dear Esteban what will be the policy for people bought previous detectors? absolutely nothing.

[Max]

Originally Posted by Esteban

I'm making many modifications for the 2008 for a friend. When I finish this (I HOPE IS UNIVERSAL MODIFICATIONS FOR MAYBE ALL KINDS OF MINEORO PISTOLS, INCLUDE OLD MODELS), I'LL POST SOME SCHEMATIC HERE. SO, WAIT!!! SORRY!!! I'M VERY BUSY!!! See pics of the original and modifications. There is more a PCB (RF), I'm experimenting a good option for it. Now acts as a induction loop balance (also corners of loops catch metal, but more big, in ferrite place is extremely sensitive), I think is a first??? balance loop by ferrite oscillator).

You can see a coin detection (but no audio, because I take with a photo camera without audio, but yes led). Download from this link, file in mov extension, you need Quicktime programm.
http://www.sendspace.com/file/9qjwuw

Clondike, you're enerve with this attitude:

First man made fire and that was a big thing.
I want to see a working LRL FIND A COIN AT 2 METERS.
I would like to work on a active system.
So help is needed. the coin I want to pick up at 2 meters is a dime.
Some PI detectors are very good on deep coins


Regards

Esteban

Hi,
I saw these orange (or RED ?) caps somewhere else... but don't remember now where exactly...

Also the blue and yellow tantalium I saw somewhere ... but where ???

Kind regards,
Max

[Esteban]

Originally Posted by Max

Hi,
I saw these orange (or RED ?) caps somewhere else... but don't remember now where exactly...

Also the blue and yellow tantalium I saw somewhere ... but where ???

Kind regards,
Max

Orange caps made in Brazil, very stable, special for hot days, maybe climatized .

I decide to replace the magnetic pre stage by one based on LM 358, very better and very sensitive too.

I think can replace the more complicate ferrite stage (you know wich) of other pistol with many advantages...

Regards

Esteban

[Esteban]

Originally Posted by michael

Hi, good to see that you're doing such effort, but dear Esteban what will be the policy for people bought previous detectors? absolutely nothing.

Michael,

I don't dictate any policy, only I help a friend... I test his 2008 (of my friend) and isn't very sensitive. If you decide transform your pistol, I can send schematic of the circuits. The new implementation has 3 new small PCB, one no yet finish (RF detector), because I'm trying this.

I think FG version need to disconnect the previous fet of search head...

But I'm sure this replace some models, include old DCH 85, DCH 86, etc.

Regards

Esteban

[Clondike Clad]

Do hung know about your mods?
I would like to know what he thanks.

[Esteban]

Originally Posted by Clondike Clad

Do hung know about your mods?
I would like to know what he thanks.

No, Hung don't know.

Regards

Esteban

[michael]

Originally Posted by Esteban

Michael,

I don't dictate any policy, only I help a friend... I test his 2008 (of my friend) and isn't very sensitive. If you decide transform your pistol, I can send schematic of the circuits. The new implementation has 3 new small PCB, one no yet finish (RF detector), because I'm trying this.

I think FG version need to disconnect the previous fet of search head...

But I'm sure this replace some models, include old DCH 85, DCH 86, etc.

Regards Esteban

Hi, thanks man, but it's impossible for me to send it out of my country as these detectors are completely illegal,
importing is very hard( we spent at least 1000$ to import it) and to sending it out is impossible, if was, I would do it.

[Clondike Clad]

Can some one explain to me how the dc2008 works.

[Clondike Clad]

It looks as if MINEORO dc2008 have many problems for the money.
It don't work.
